Professional HVAC System Takeoff & Estimation Services

🛠️ What’s Included in the Service?

I provide a meticulous breakdown of all mechanical components found in your project blueprints:

• Detailed Equipment Schedule: Precision counts for RTUs, AHUs, Split Systems, VAV boxes, Exhaust Fans, and FCUs.
• Ductwork Quantification: Breakdown of rectangular, round, and oval ducting by size, material (Galvanized, Stainless, Aluminum), and gauge.
• Piping & Hydronics: Complete takeoff for chilled water, hot water, refrigerant piping, and condensate lines, including fittings and valves.
• Air Distribution: Itemized counts for Grilles, Registers, Diffusers (GRDs), and Louvers.
• Insulation & Accessories: Accurate linear footage for duct wrap, piping insulation, and counts for fire dampers and VCDs.

📊 Deliverables You Will Receive

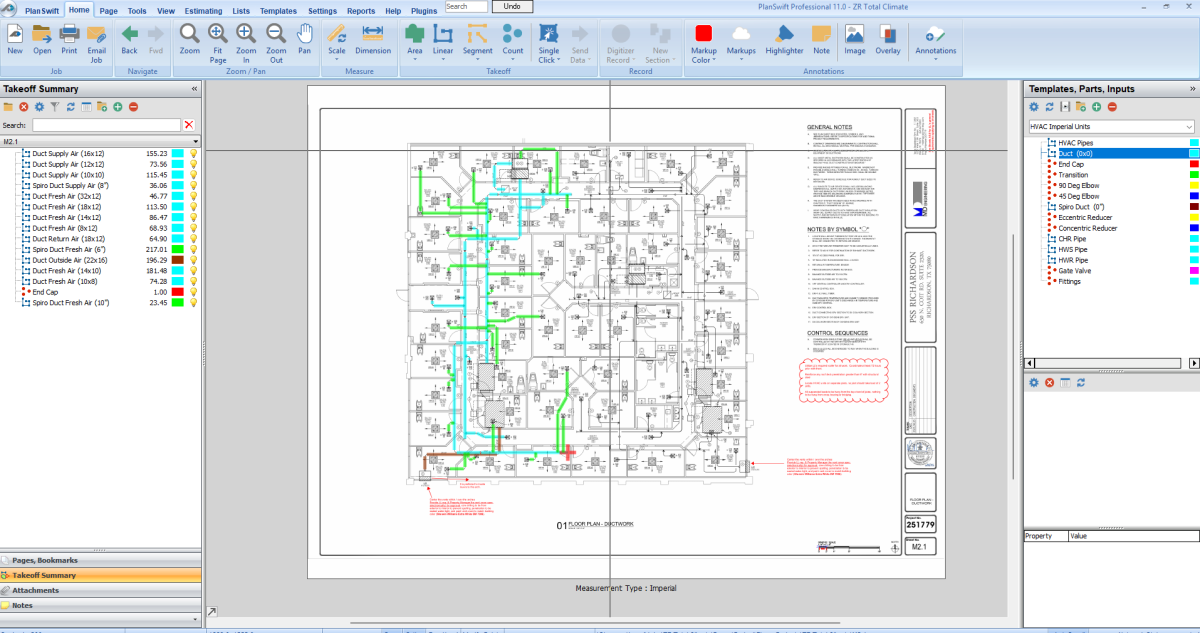

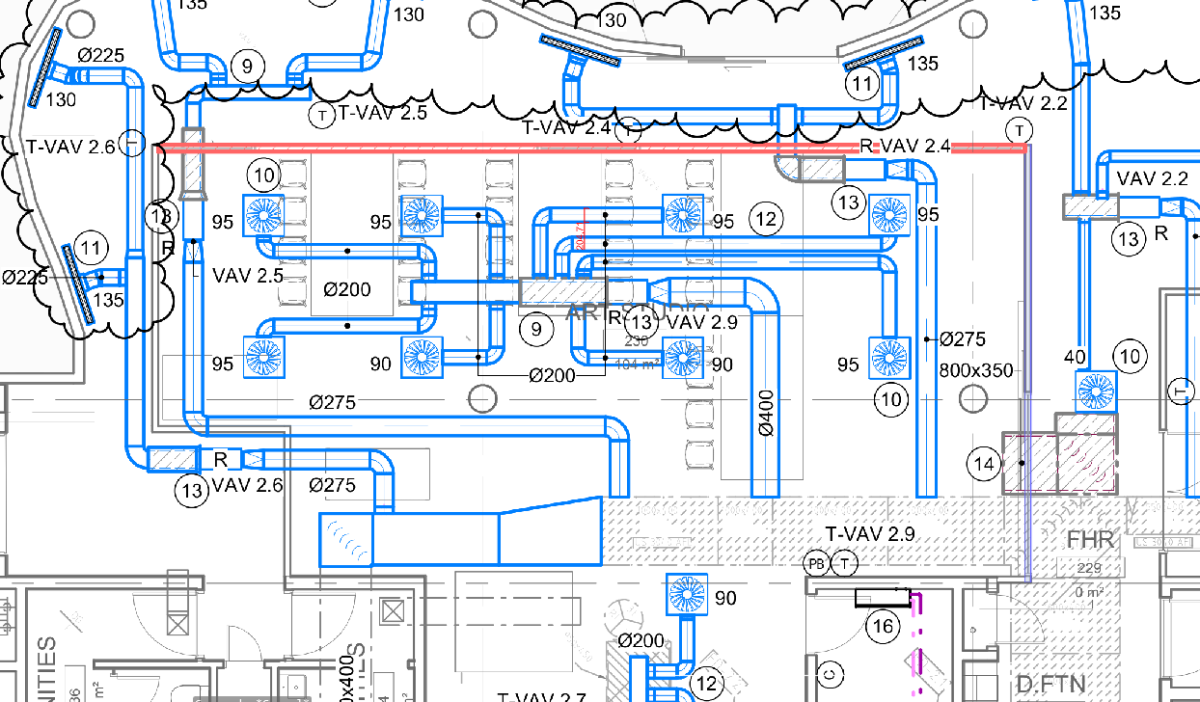

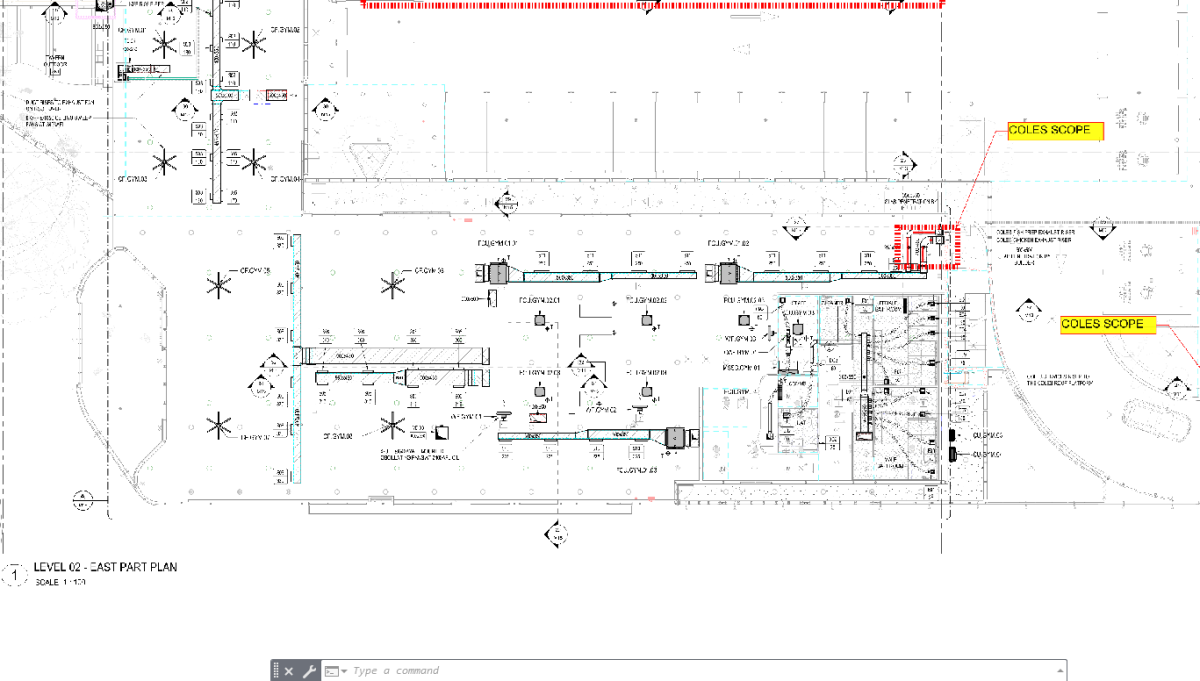

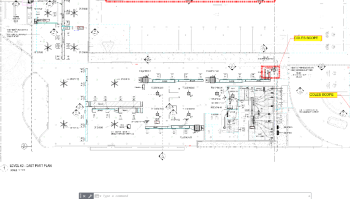

1. Marked-up Drawings (PDF): Color-coded, high-resolution drawings exported from PlanSwift/AutoCAD showing exactly what was counted. This serves as your visual verification.

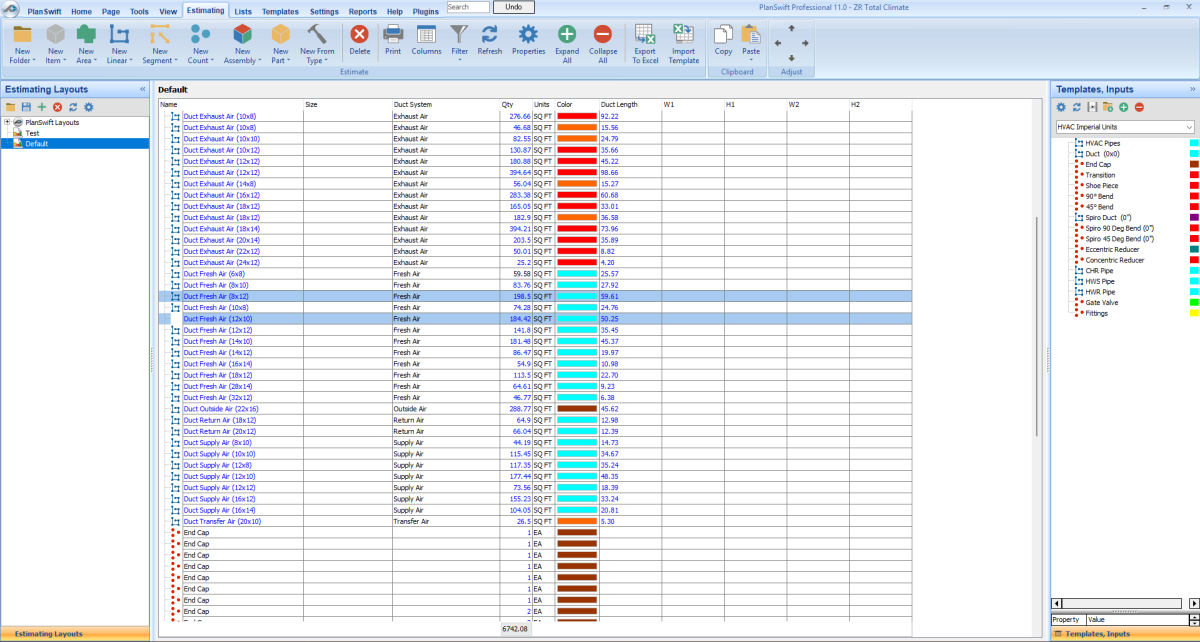

2. Comprehensive Material List (Excel): A formatted, easy-to-read spreadsheet categorized by system, floor, or zone.
3. Bill of Quantities (BOQ): Ready for vendor pricing, including all mechanical specialties and hardware.

🚀 Why Choose This Service?

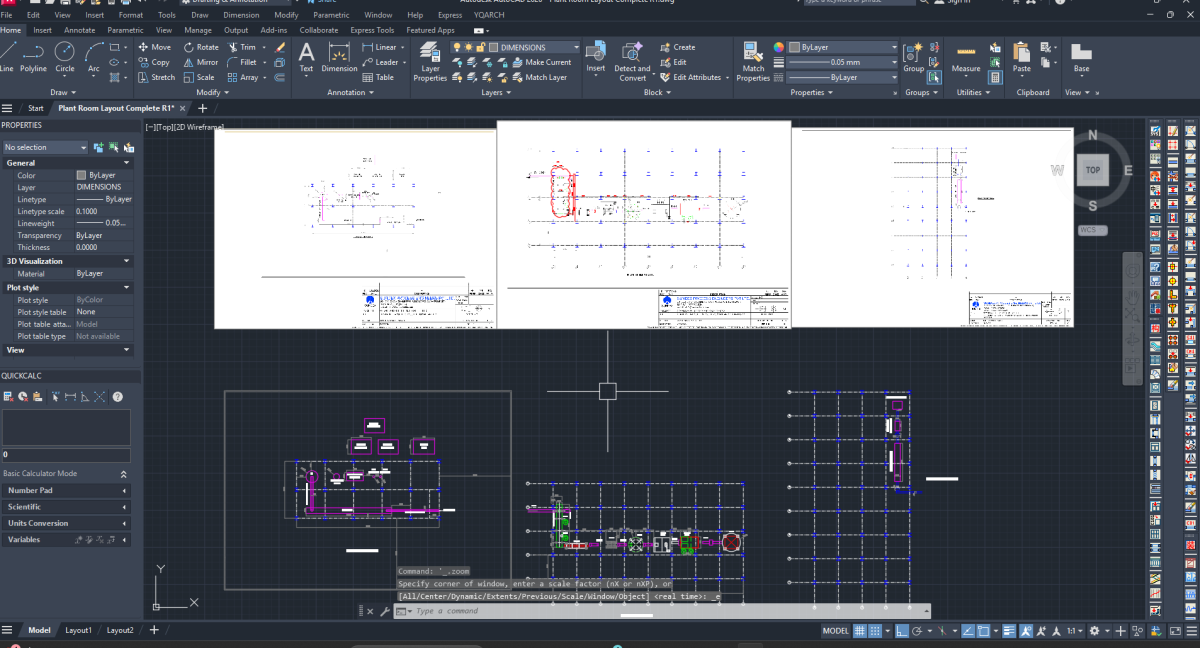

• Software Mastery: Expert-level use of PlanSwift for rapid on-screen takeoff and AutoCAD for complex architectural layouts.
• Accuracy Guaranteed: I account for every transition, elbow, and flex duct to ensure your material orders are spot-on.
• Quick Turnaround: I understand the pressure of bid deadlines and provide reliable, timely delivery.
• Clear Communication: I highlight any plan discrepancies or missing information (RFIs) immediately to save you headaches later.
